Android Exception - AAPT: error: unexpected element found in

异常信息

尝试 Android 15 新增的更精确 Intent 解析的功能时,出现如下两种错误:

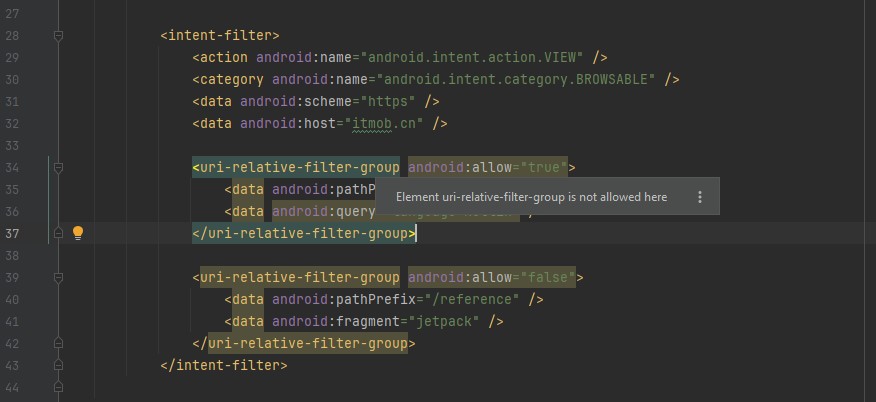

  1. 在 Android Studio(Android Studio Koala | 2024.1.1)中编辑 AndroidManifest.xml,添加 <uri-relative-filter-group> 标签时,提示如下错误提示:

    Element uri-relative-filter-group is not allowed here


    Element uri-relative-filter-group is not allowed here

  2. 编译应用时提示如下错误:

    > Task :app:processDebugResources FAILED
    AGPBI: {"kind":"error","text":"Android resource linking failed","sources":[{"file":"C:\\Users\\itmob.cn\\WorkSpace\\ComposeSample\\app\\src\\main\\AndroidManifest.xml","position":{"startLine":33,"startColumn":16,"endLine":37,"endColumn":44}}],"original":"ERROR: C:\\Users\\itmob.cn\\WorkSpace\\ComposeSample\\app\\src\\main\\AndroidManifest.xml:34:17-38:45: AAPT: error: unexpected element <uri-relative-filter-group> found in <manifest><application><activity><intent-filter>.\n    ","tool":"AAPT"}
    AGPBI: {"kind":"error","text":"Android resource linking failed","sources":[{"file":"C:\\Users\\itmob.cn\\WorkSpace\\ComposeSample\\app\\src\\main\\AndroidManifest.xml","position":{"startLine":33,"startColumn":16,"endLine":37,"endColumn":44}}],"original":"ERROR: C:\\Users\\itmob.cn\\WorkSpace\\ComposeSample\\app\\src\\main\\AndroidManifest.xml:34:17-38:45: AAPT: error: unexpected element <uri-relative-filter-group> found in <manifest><application><activity><intent-filter>.\n    ","tool":"AAPT"}

    FAILURE: Build failed with an exception.

    * What went wrong:
    Execution failed for task ':app:processDebugResources'.
    > A failure occurred while executing com.android.build.gradle.internal.res.LinkApplicationAndroidResourcesTask$TaskAction
       > Android resource linking failed
         ERROR: C:\Users\itmob.cn\WorkSpace\ComposeSample\app\src\main\AndroidManifest.xml:34:17-38:45: AAPT: error: unexpected element <uri-relative-filter-group> found in <manifest><application><activity><intent-filter>.

         ERROR: C:\Users\itmob.cn\WorkSpace\ComposeSample\app\src\main\AndroidManifest.xml:34:17-38:45: AAPT: error: unexpected element <uri-relative-filter-group> found in <manifest><application><activity><intent-filter>.


    * Try:
    > Run with --stacktrace option to get the stack trace.
    > Run with --info or --debug option to get more log output.
    > Run with --scan to get full insights.
    > Get more help at https://help.gradle.org.


解决方法

这是因为 UriRelativeFilterGroup 对更精确的 Intent 解析是从 Android 15 增加的新功能和 API,

  1. 当前最新的 Android Studio 稳定版本是 2024.1.1.13,它的 Manifest 编辑器不支持 <uri-relative-filter-group> 标签,对其支持是从 Android Studio Ladybug | 2024.1.3 Canary 1 开始的。
  2. 支持 UriRelativeFilterGroup 需要 AGP (Android Gradle Plugin) 的最低版本是 8.7.0-alpha01

解决方法:

  1. 确保使用的 Android Studio 是 Ladybug | 2024.1.3 Canary 1 及之后的版本(目前(2024年8月) Ladybug 还未推出稳定版,只能使用预览版)
  2. 确保使用 AGP 8.7.0-alpha01 或更新版本
